A Top Quality Medical System

With the ONYX medical grade board and TIANMA’s full HD TFT Display.

When looking to produce a system for medical automation you need to be sure that the board is of the highest specification and that the display has a long production life, a wide colour gamut and full HD colour reproduction.

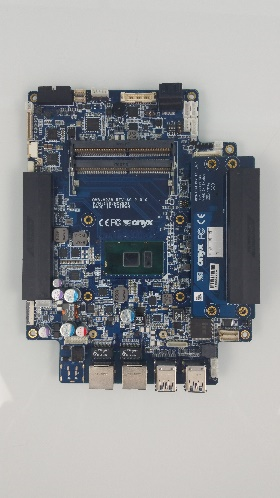

Onyx Medical Grade Board – OBM M228

The Onyx medical grade CPU is based on the 14nm technology 6^th Generation Intel Skylake-U Core i series ultra low power, high performance processor. It is rugged has sensor connectivity and lithium battery management built onto the board. This board has been further enhanced with EMI pre-scan to enable UL/EN60601 compliance.

Features

14nm 6^th Gen Intel Skylake-U Core I series

Lithium battery management built-in

2 x SO DIMM sockets

Up to 16GB DDR4 SDRAM

High-end graphics for 4K & 2K resolution

TIANMA 18.5” Full HD SuperFine TFT panel

Medical systems need a top quality screen. This 18.5” full HD unit offers great readability even in strong sunlight, wide view angles, a wide colour gamut and a wide temperature range making it idea for medical application.

Features

Ultra-wide viewing angle 176°/176° (SFT)

High contrast ratio 1000:1

High Luminance 400cd/m²

Wide colour gamut 72%

Wide temperature range –20°C to +80°C

LVDS or eDP interface

Perfect Partners for Medical Applications

For more information on this system or if you have a specific requirement please call us on 01959563345 or go to www.review-displays.co.uk
