More than 25 sensors are available, including the latest Global Shutter and Rolling Shutter sensors from Sony or On Semi. The models cover a broad spectral range including UV, visible, NIR, and SWIR. With superior image quality through FPNC, DPC, Active Sensor Alignment, and industrial standard hardware, both Alvium G1 and G5 provide future-proof reliability for your applications.
Alvium G1 – The smallest sugarcube GigE camera in the market
The Alvium G1 camera series comes in a future-proof package with a comprehensive feature set including a broad selection of the most popular sensors in machine vision. By using our Alvium chip and the latest industrial standard hardware, it can easily be integrated into any vision system while ensuring long-term availability and reliability. And the best part is – early production cameras are already available!
- Mount options: C-Mount / CS-Mount / S-Mount (M12)
- Camera control options: Vimba SDK or GenICam-compliant third-party software
- Operating temperature: -20°C to +55°C
- Power requirements: Power over Ethernet (PoE) or external power 12-24 VDC
- Body dimensions (L × W × H): 41mm × 29mm × 29mm (Closed Housing)
Alvium G5 – The easy upgrade for more performance
The Alvium G5 camera series combines the advantages of the 5GigE interface and the flexibility of the Alvium platform. It provides all the advantages of the GigE Vision standard while providing more bandwidth for applications, where resolution and frame rate are critical. The Alvium G5 camera series enables an easy upgrade of existing systems (USB3 Vision or GigE Vision) and offers backwards compatibility with GigE solutions. All these advantages come in a familiar sugar cube form factor to ensure easy migration for your application.
- Mount options: C-Mount / CS-Mount / S-Mount (M12)
- Camera control options: Vimba SDK or GenICam-compliant third-party software
- Operating temperature: -20°C to +60°C
- Power requirements: Power over Ethernet (PoE) or external power 12-24 VDC
- Body dimensions (L × W × H): 60mm × 29mm × 29mm (Closed Housing)
One platform, infinite solutions

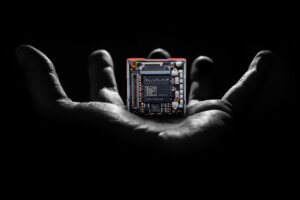

All Allied Vision Alvium cameras share the same platform. They are based on ALVIUM® Technology – a custom ASIC packed with unique features and 30 years of machine vision industry expertise. This offers highest flexibility for the development of any vision systems and makes it very easy to adjust and upgrade it when prototyping, upgrading or downgrading your system.
Alvium cameras are available with 6 different interfaces for diverse requirements. Together with the large choice of high-quality image sensors, various lens mount and housing options, and a wide range of spectral sensitivities the Alvium platform offers highest flexibility and more than 200 cameras to choose from. Thanks to the sugar cube format, a common SDK, one CSI-2 Driver, the cameras can easily be integrated in any vision systems and later replaced or upgraded by any other Alvium camera.
