Both traction Force as well as Stroke adjustments in one tool
Most blind rivet nut setting tools on the market are stroke controlled, while not many are traction force controlled. GESIPA® now offers both features together in a single, worldwide unique pneumatic-hydraulic tool and provides the user with the choice between both setting modes: easy, fast and safe.
The features provided by traction force adjustment tool will stop pulling the blind rivet nut when a pre-adjusted traction force threshold is reached. Also, no re-adjustment is needed when setting blind rivet nuts into different material thickness or when using blind rivet nuts with different shaft lengths. It prevents damage of the material, which cannot be overstressed by a too high setting pressure and preserves the integrity of the blind rivet nut thread. As a bonus, it also extends the life duration of the threaded mandrels.
The stroke adjustment is easily and clearly performed using a millimeter scale on the tool adjustment thumb wheel, without the need for any tool, after having adjusted the pulling force to its maximum. The millimeter adjustment scale exactly reflects the effective stroke of the threaded mandrel, so that maladjustment is nearly impossible. Moreover it is safely locked to prevent any drift.
The choice between stroke and traction force control also makes it suitable for industrial applications where several material thickness need to be covered, which would normally require the use of several tools.

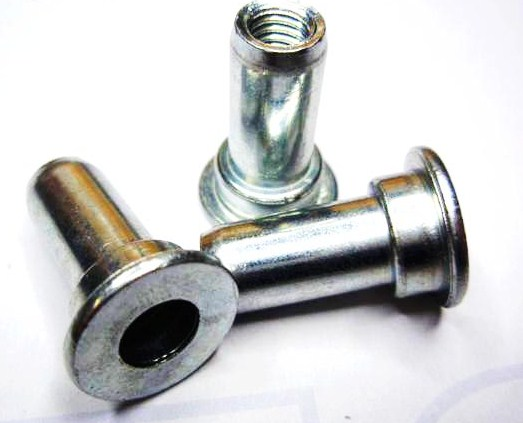

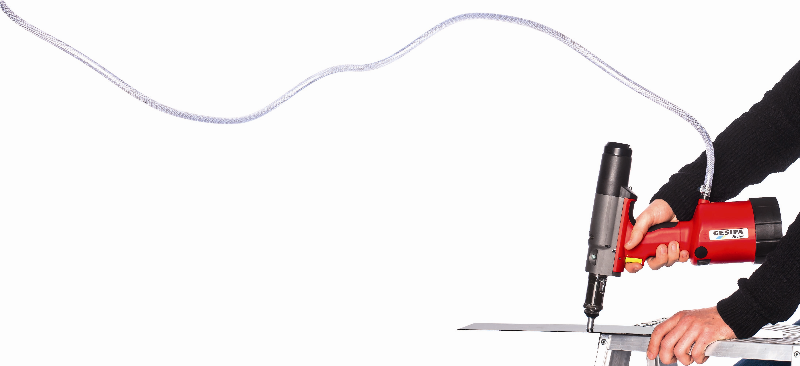

FireFox® can be used to set blind rivet nuts from M3 to M12 and also the new generation with extended grip range like the GESIPA® PolyGrip® products with its outstanding 10mm stroke.
Gesipa Blind Riveting Systems Ltd manufacture and deliver an extensive range of rivet, rivet nuts, rivet nut studs, associated tooling and bespoke based solutions. With ISO 9001, ISO14001 and ISO/TS 16949:2009 accreditations Gesipa offers a complete range of engineering solution for specific fastening requirements to the automotive, construction, railway, white goods, electronics and many other varied industries.
Contact Information:
Gesipa Blind Riveting Systems Ltd
Dalton Lane, Keighley, West Yorkshire,
BD21 4JU
T: +44 (0) 1535 212200
F: +44 (0) 1535 212232
More Info (http://www.gesipa.co.uk/subproduct-detail?pro_id=35)
