- Double sealing – IP66
- Ecolab approved
- Polyamide 6.6 Glass fibre reinforced – UL 94-V0
- Outstanding strain relief
- All variants are available in grey and black

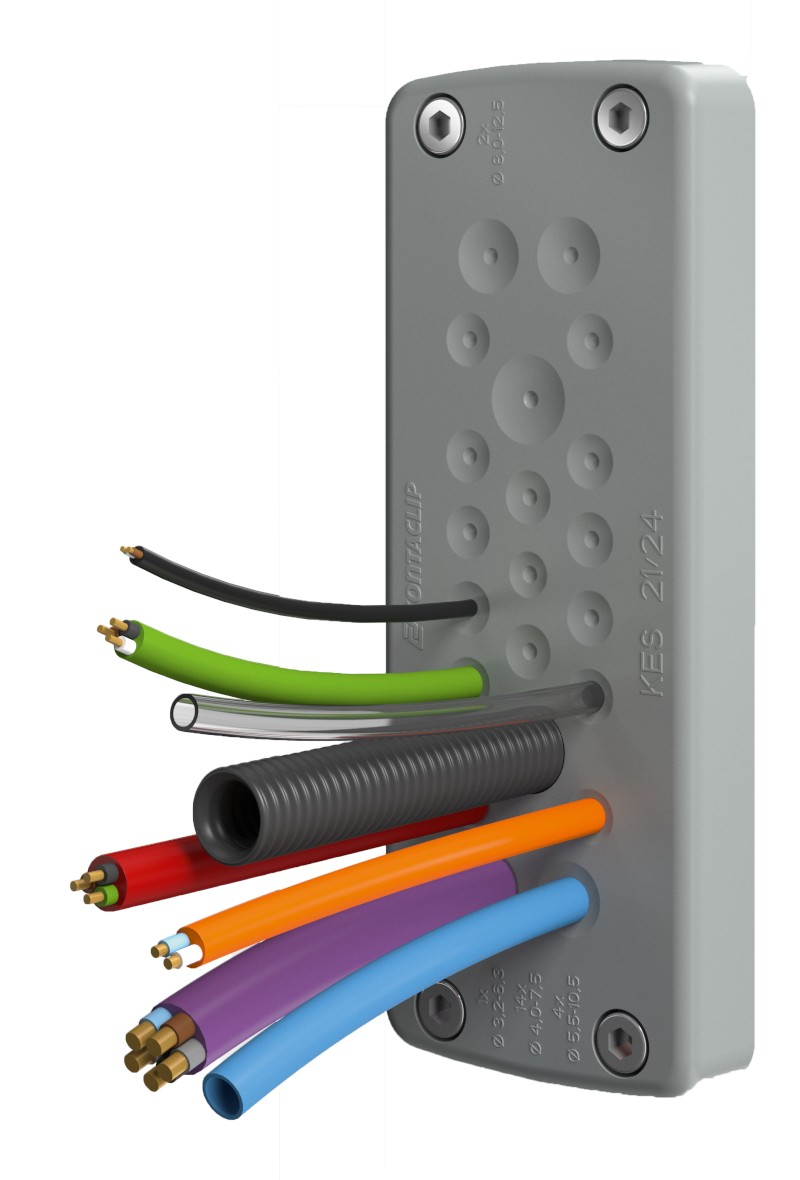

The new KES series of gland plates from Conta-Clip enables the quick and safe entry of cables, pipes and tubes without connectors into cabinets and machine housings.
KES plates provide IP66 ingress protection with no need to specially fit and secure cables with screws.
The robust polyamide frames filled with elastomer are placed on the outside of the cabinet or housing wall and fixed with screws onto 36mm x 112mm openings.
The plates feature a low profile height of only 14mm. For a tool-less installation they can also be snapped-on. In this case the screw holes remain completely sealed thanks to the layer of elastomer.
Conta-Clip is launching the new KES plates in 24 variants designed for different maximum numbers of lines and cable diameters.
Many cables in a confined space
Many cables (with various diameters from 3.2 to 20.5 mm) can be inserted in a confined space and double sealed (IP66) thanks to the special construction of the conical grommets.
In order to insert the cables, the corresponding membrane (with marked centre point) must be pierced; the cables are then simply guided through into the enclosure.
YOU CAN CHOOSE ONE OF THREE ATTACHMENT OPTIONS TO FIT YOUR REQUIREMENTS
1. Screw-on mount The KES (without threaded bush) is screwed from the outside onto the housing wall.
2. Screw-on mount with threaded bushes and latching clips. Using the latching clips, the KES-GB latches onto the outside of the housing, then is screwed on from the inside using the integrated threaded bushes.
3. Latched (snap-on) mount using latching hooks. The KES-R is secured in place using the latching clips from the outside of the enclosure.
Very precise
The piercing points are clearly marked so that cables and hoses can be centred precisely.
Integrated strain relief
The special shape of the multi-layered membrane cone grommet ensures an optimal strain relief mechanism for the cables, in accordance with DIN EN 62444.
