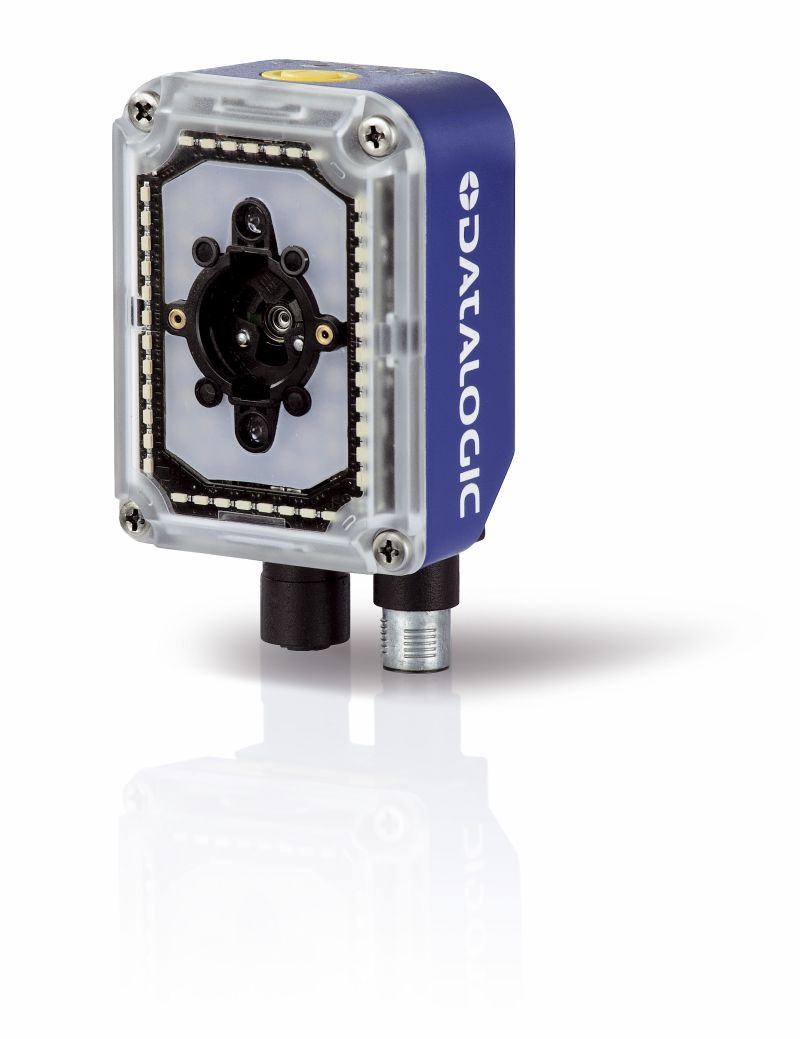

The Matrix 300™ is an ultra-compact image based bar code reader designed for outstanding performance on high speed 1D/2D and Direct Part Marking (DPM) applications.
Combining a high resolution sensor with ultra-fast image acquisition the optical system incorporates a liquid lens module for the electronic control of the focus. As a result the reader offers automatic focus adjustment without internal moving parts.
The integrated illuminator covers the entire front surface of the reader. This innovative design enables bright and uniform illumination of the bar code. The lighting design uses both bright field and dark field patterns which provide perfect illumination on normal, etched, highly reflective or textured surfaces.
With exceptionally small physical dimensions and a rotating connector, the Matrix 300™ can be easily integrated into the tightest of spaces. The Power over Ethernet (POE) option is another unique cost effective feature meaning that power and communication can be provided to the reader using a standard single Ethernet connection.
