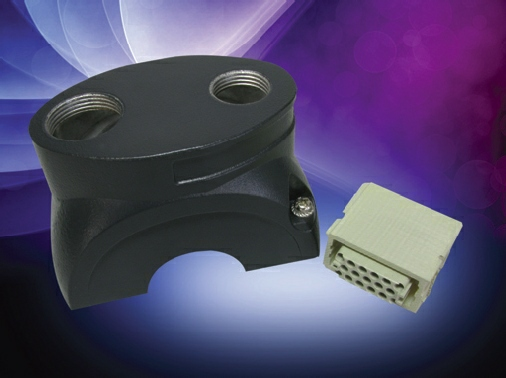

A universal hood and a mixed adaptor frame have been added to the range of housing and insulator components for use with Harting’s Han-Yellock industrial connector system. The new additions enhance flexibility in system designs by making cable layout more flexible and by allowing an increased number of connector configurations.
The universal hood provides enough space for a range of cable entry combinations for layouts ranging from 3 x M20, 2 x M25, 2 x M32 to 1 x M50 cable glands. Individual cables can be fed in and fitted with separate cable connections. Standard cable connections can be used, with the added benefit that maintenance can be carried out by replacing separate individual cables.
This range of cable entry options is particularly important for use with modular insulators. Alongside Han-Yellock modules with bridging functionality, Han-Modular modules can also be used to handle a wide range of transmission types from power to data.
The functionalities of the Han-Yellock and Han-Modular ranges are integrated within a single compact interface, reducing the number and size of connectors on a panel and providing a quick mating operation.
