In today’s industrial landscape, data is generated in vast quantities at the edge of the network – in factories, retail environments, transport systems or digital signage installations. Processing this information directly on site rather than in distant data centres reduces latency, increases reliability and enables real-time decision-making. Edge computing has therefore become a cornerstone of digital transformation, powering predictive maintenance, process automation, smart surveillance and many other use cases.

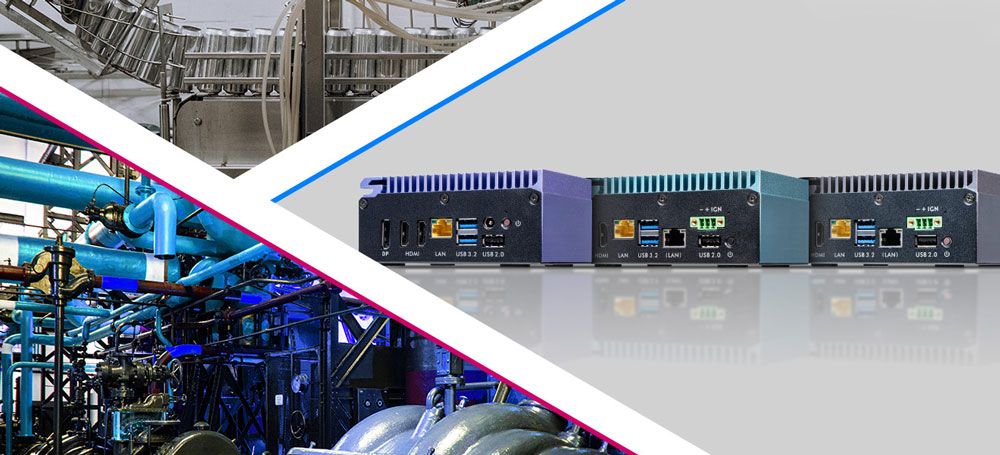

Shuttle, a long-established specialist in compact PC platforms, has responded with a dedicated series of industrial edge PCs. These systems combine ultra-compact design with robust engineering and flexibility, addressing the needs of automation engineers, system integrators and industrial IT professionals alike.
Ultra-compact, built for industry
At just 120 × 75 × 51 mm, each system in the series occupies less than half a litre of volume. Despite their size, the devices are engineered for continuous 24/7 operation in demanding environments. A fanless, solid-metal chassis not only minimises noise but also prevents dust accumulation and reduces maintenance. Multiple mounting options – including VESA brackets and DIN-rail clips – give integrators freedom to install them inside control cabinets, behind displays or in mobile enclosures.
All models are powered by efficient Intel processors of the Elkhart Lake or Atom x6000 series. Paired with up to 32 GB DDR4 memory and fast M.2 storage, they provide ample performance for industrial protocols, real-time monitoring or media playback. A rich I/O set – including dual 2.5-Gigabit Ethernet, USB 3.2, serial COM ports and digital I/O – ensures seamless integration with existing equipment.
Four tailored solutions

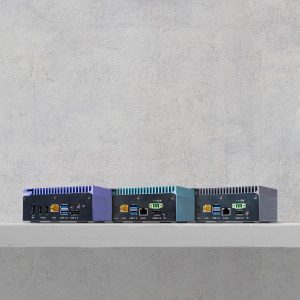

While sharing the same design DNA, the four models address different industrial scenarios:
- General-purpose edge applications benefit from a versatile system that balances compute performance, connectivity and compactness. This all-rounder is ideal for IoT gateways, automation tasks or local data logging.
Harsh environments require more than office-grade hardware. For these cases, Shuttle offers a rugged variant specified for ambient temperatures between –20 °C and +60 °C. It is suitable for deployments on factory floors, in transport systems or semi-outdoor locations where reliability at extreme temperatures is essential.- Digital signage and multi-display projects demand strong graphics output. One model is optimised for this role, driving up to three displays simultaneously via dual HDMI and DisplayPort. With an optional SIM slot for mobile connectivity and microSD expansion, it is well suited for advertising networks, passenger information systems or corporate communication screens.
- Power-over-Ethernet (PoE) integration is the latest enhancement. The newest model adds IEEE 802.3at compliance, allowing integrators to power the system directly via a network cable. This eliminates the need for a separate power supply and simplifies installation in space-constrained or hard-to-reach areas. Where power distribution is already centralised in a PoE switch, cabling effort is reduced and reliability increased.
Flexibility through modular design
Edge computing requirements are diverse – from AI-assisted video analytics to lightweight protocol translation. Shuttle’s design embraces this diversity. All models provide two M.2 slots: one for storage and one for expansion. Integrators can choose Wi-Fi 6 modules, LTE/4G cards or even AI accelerators such as the Hailo-8. This modularity allows the same platform to adapt to different roles without changing form factor or certification.
The digital I/O port (with four inputs and four outputs) enables direct control and monitoring of industrial sensors and actuators. Combined with dual LAN, this supports gateway scenarios where field devices communicate with cloud-based dashboards – all handled locally at the edge.
Reliability and compliance
Industrial deployments demand resilience. These edge PCs comply with MIL-STD-810G vibration and shock standards and meet EMC requirements such as EN 50121-3-2 for railway applications. A hardware TPM 2.0 chip adds a trusted platform root for secure boot and encryption, while Wake-on-LAN and PXE support simplify asset management.
The systems run both Windows 10/11 (64-bit) and Linux, giving integrators freedom to deploy existing software stacks. BIOS options even allow power-on delays, useful in automotive or transport settings where equipment should follow ignition cycles.
Application scenarios
Industrial automation: Running SCADA clients, PLC communication or protocol conversion directly at the machine.- Smart retail: Acting as gateways for sensor-rich shop environments and supporting customer analytics.
- Transportation: Withstanding vibrations and temperature extremes in rolling stock or roadside equipment.
- Surveillance and security: Handling video streams, AI-based anomaly detection and secure data transfer.
- Digital signage: Driving multiple 4K displays in airports, stations or shopping malls.
Each scenario benefits from reduced latency, lower bandwidth costs and increased reliability compared to cloud-only deployments.
Edge computing is no longer a buzzword but a practical necessity for modern industries. Shuttle’s dedicated edge PC series combines compact size, ruggedness and versatile expansion to meet the needs of automation and IT professionals. With four tailored variants – including a new PoE-enabled model – the line-up offers flexibility without complexity.
For organisations seeking to unlock the potential of data directly where it is generated, these edge PCs provide a powerful yet space-saving foundation. Whether installed behind a screen, inside a cabinet or on a moving vehicle, they deliver reliable performance where it matters most – at the edge.
Further technical details and documentation are available on Shuttle’s website: https://go.shuttle.eu/gzrFg
