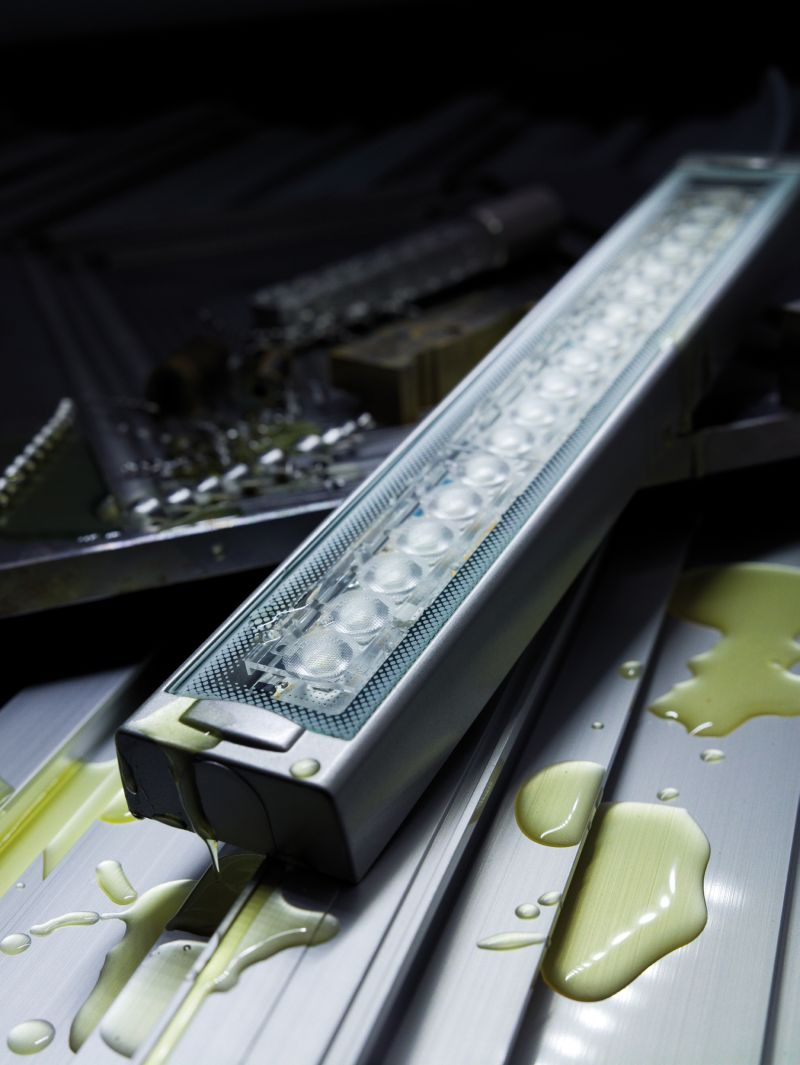

PATLITE’s new CLK-LED work light is resistant to water, oil, dust and chemicals. With 2,100 Lux it has an unusually high luminous intensity for perfect illumination of the workplace.
The specialist for visual and audible signalling devices offers its newest work light in an aluminium or stainless steel housing, depending on the area of application. The aluminium version is water-, dust- and oil-tight and therefore ideal for use in rough environments, such as engineering shops and production halls.
The version with the stainless steel housing is also water- and dust-tight and resistant to chemicals, which makes it suitable for use in the medical, chemical and food industries. The special design of the light fixture prevents dust from accumulating. Water and oil simply slide off the surface. The surface of the light glass, available in tempered or acrylic glass, is also easy to clean. Patlite’s newest LED work light complies with protection classes IP66G, IP67G und IP 69K.
Non-glare lenses

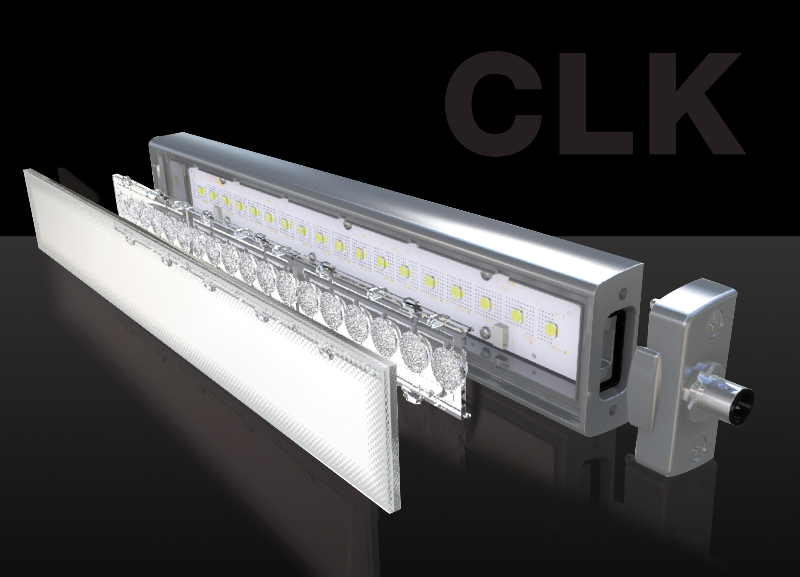

The specially designed micro-array lenses compensate the refraction of light for a constant, uniform light emission over the entire length. The lens design fulfils the safety requirements for non-laser optical radiation in accordance with EN 62471-2 for the photobiological safety of lamps and lamp systems. This ensures non-flickering operation of the CLK-LED lights without stroboscopic effects and also eliminates the danger of direct damage to the human retina. The emitted light contains neither infrared nor UV radiation. The lamp therefore generates no heat that could damage materials or products.
Easy mounting
Mounting the work light is achieved by sliding the fixture over the wall fitting. A set screw holds it securely in place. In addition PATLITE also offers an adjustable wall mount, which makes it possible to adjust the light in 10° steps from an angle of 0° to 60°. An extra flat, space-saving mount will also be available soon.
Large selection of lengths and connections
The aluminium version of the CLK-LED light bar is available in lengths of 200, 300 and 600 millimetres. For the 300 and 600 mm versions Patlite offers a standard cable connector, as well as an M12 plug-in connector or an M12 loop-through connector. In the stainless steel version the new work lights are available in a length of 300 millimetres with an M12 plug-in connector. All CLK-LED work lights operate reliably in a temperature range from -40°C to +60°C.
About PATLITE
Established in 1947, PATLITE is today one of the world’s leading manufacturers for visual and audible signalling devices.The extensive PATLITE product line includes advanced LED signal lights, revolving warning lights, audible alarms and LED work lights with high protection ratings for industrial applications. A global sales and service network guarantees close customer relations, intensive service at the local level and short delivery times. Learn more at www.patlite.com.
