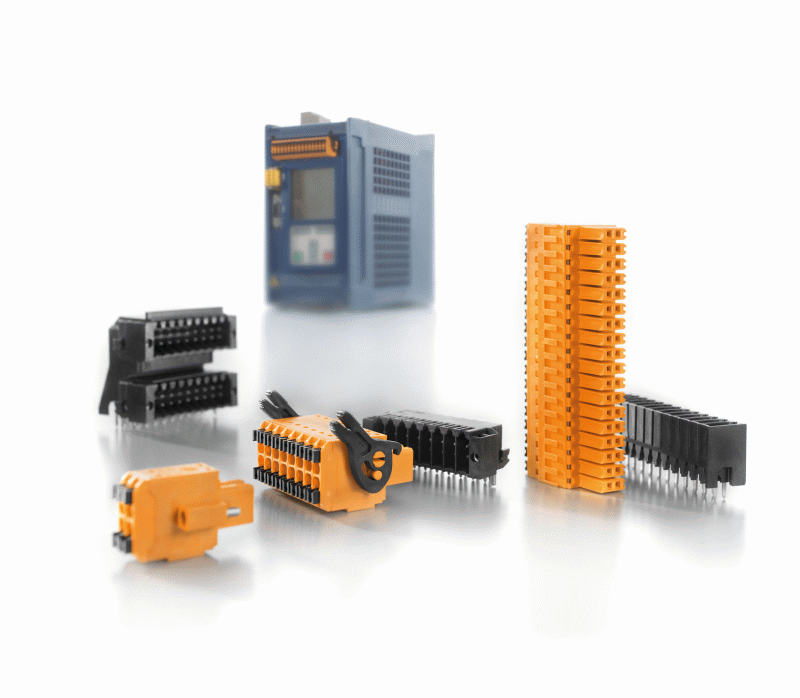

When designing customised device connectivity products for modern applications, it is becoming increasingly important to find the ideal balance between device miniaturisation and increased device functionality. The new double-row OMNIMATE B2CF Signal connector, from Weidmuller, in 3.5mm pitch has this perfect fit and allows a new generation of more compact designs. This connector is easy to work with, despite the increased functionality being packed into a compact space. The PUSH IN direct-insert wire connection mechanism allows you to conveniently connect the signal wires. Other useful features include: the tool-free locking and unlocking, the touch-safe male header, and the outstanding clarity provided by easy-to-read markers that identify each terminal point.
• Packing Density 2.0; Smaller devices with increased technical capabilities are being designed for more applications. They take advantage of more contacts packed onto a small surface and a large wire cross-section capacity.
• Clear frontal marking; Clarity is enhanced with clearly legible markers at each terminal point and unique labelling of the installation position.
• Convincing safety during use; Assured safety during use; with attractive features such as quick wire connections, tool-free locking and unlocking, and touch-safe design.
• Solid PUSH IN contacts; A safe, permanent connection is ensured by the optimised spring steel and specially shaped contact element.
• Large wire cross-sections; You can easily connect wires with cross-sections up to 1.5mm² (when using wire-end ferrules) and up to 1.0mm² (when using ferrules and plastic collars).
Direct insertion
PUSH IN: the quick, tool-free, intuitive connection mechanism for prepared wires. www.push-in.com
Halogen-free and IEC 60335
Halogen-free materials ensure future compatibility and extended approvals enhance the range of use for new device designs.
Comprehensive system accessories

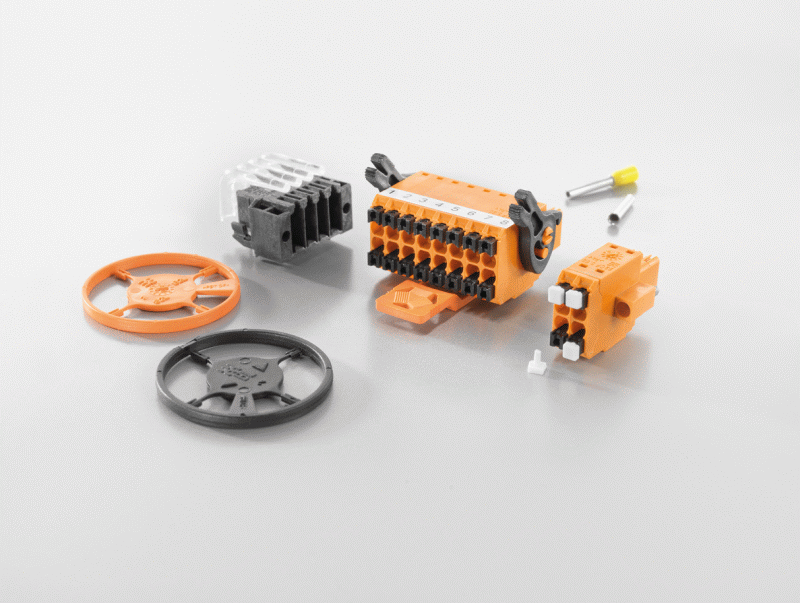

Matching Weidmuller accessories – including markers, light guides, strain relief and coding – improve operational safety and enable a professional design.
For more information visit: www.weidmuller.co.uk .
