Ruland quick clamping shaft collars require no tools for installation, adjustment or removal, making them a convenient and efficient choice for a variety of packaging equipment and applications. Designers and operators of packaging machines such as wrappers, bundlers and cartoners benefit from the faster, tool-less adjustment of quick clamping shaft collars.
Ruland offers two types of quick clamping shaft collars: collars with cam levers and collars with clamping levers. Quick clamping shaft collars with cam lever have an integral lever that sits flush with the outside diameter and is finger actuated. The design features a tension-adjustment screw that can be adjusted to tailor axial holding power to application needs. These collars are one-piece clamp style and require shaft end access to be installed properly. They are best suited for light duty and low rpm applications with frequent change-outs of items like guide rails or other setup fixturing.
Quick clamping shaft collars with clamping lever feature a Ruland manufactured shaft collar combined with an adjustable clamping lever that replaces standard hardware. The final assembly is a shaft collar with a ratcheting handle that can be easily installed, removed or repositioned without tools. They have the benefits of traditional Ruland shaft collars such as not marring the shaft, tight controlled face-to-bore perpendicularity (TIR of ≤ .002 inch or 0.05 mm), and a fine burr-free finish, allowing them to be used in a wide variety of packaging applications. These shaft collars with clamping levers are offered in one- and two-piece clamping styles and with outer diameter flats and holes for easier mounting of other components.
Quick clamping shaft collars with cam levers are manufactured from 6061 anodized aluminium bodies and 6063 aluminium handles with bore sizes from ¼ inch to 3 inches and 6 mm to 75 mm. Quick clamping shaft collars with clamping levers are offered in standard materials including 1215 lead-free steel with black oxide or zinc plated finish, 303 and 316 stainless steel, high strength 2024 aluminium, and engineered plastic. The lever is sourced from JW Winco and features a zinc plated handle with a stainless steel threaded stud and internal components.
All Ruland shaft collars are manufactured from select North American bar stock in Ruland factory in Marlborough, MA, under strict controls using proprietary processes. Full product information, 2D and 3D CAD files, installation videos, and more are available on ruland.com.
Summary:
- Quick clamping shaft collars require no tools for installation, adjustment or removal
- Two types available: with integrated cam lever and with removal clamping lever
- Quick clamping shaft collars with clamping lever are available in a variety of materials and styles to fit a variety of packaging applications
- RoHS3 and REACH compliant
- Carefully made in Ruland’s Marlborough, Massachusetts factory and available for immediate delivery
Product Link:
Picture:

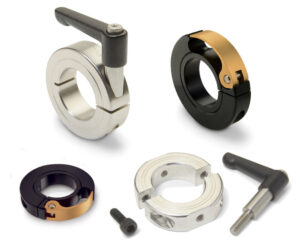

Ruland offers quick clamping shaft collars in a wide variety of sizes, styles and materials for packaging equipment. Quick clamping shaft collars require no tools for installation, adjustment or removal.
About Ruland:
Ruland Manufacturing Co., Inc. is a privately owned family company founded in 1937. Ruland has carefully and responsibly manufactured high performing shaft collars, rigid couplings, and motion control couplings for the past 40 years. Ruland’s product line was recently expanded to include a variety of machine components from select manufacturers that align with Ruland’s performance and quality standards.
