Automation has reached a point where intelligence is no longer defined solely by speed or repeatability, but by perception. From robotic pick‑and‑place systems to autonomous inspection, the ability of automated systems to see, interpret, and respond to their environment is fundamental, both for performance as well as safety. At the heart of this capability lies machine vision and, more specifically, the optical components that determine how effectively visual data is captured in the first place.
As Industry 4.0 continues to mature and the conversation shifts toward highly adaptive, data‑driven systems, optical performance is increasingly recognised as both an enabling factor and thus conversely, a potentially limiting one, in automated applications. At Knight Optical, supporting machine vision within automation means understanding not just optics in isolation, but how lenses, filters, and imaging systems behave within real‑world, demanding operating conditions.
Optics as the foundation of machine vision
Machine vision systems are only as reliable as the optical pathway delivering data to the sensor. In many automation environments, this pathway must cope with vibration, variable lighting, temperature change, contaminants, and, increasingly, non‑visible wavelength operation. High‑precision lenses play a crucial role here, whether optimised for visible inspection tasks in manufacturing or extended into near‑infrared (NIR) and short‑wave infrared (SWIR) for enhanced contrast, material differentiation, or environmental sensing.

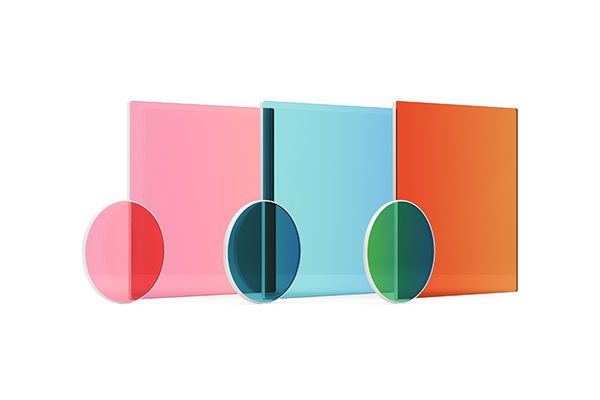

Optical filters are equally important. Bandpass, longpass, and dichroic filters are frequently used within machine vision to isolate useful spectral information while suppressing unwanted noise. In automated inspection or sorting systems, carefully selected filters can dramatically improve repeatability and reduce false positives, particularly where surface finishes or lighting conditions vary.
Beyond individual components, automation increasingly relies on integrated imaging assemblies; systems where lenses, filters, and sensors must work together within tight optical tolerances. This is especially relevant for high‑speed or multi‑spectral inspection, where alignment, transmission efficiency, and coating robustness all influence the system’s final performance.
From factory floors to fields: crop monitoring as an automation case study
While machine vision is firmly established in industrial automation, many of the same optical principles are now being applied in agricultural automation, particularly within crop monitoring. Here, automated platforms such as drones, gantry systems, and mobile robotics use vision systems to assess plant health, growth uniformity, and early signs of stress.
Multispectral imaging plays a central role in this shift. By capturing data across multiple wavelength bands (typically spanning visible and near‑infrared), automated crop monitoring systems can extract information that is invisible to the human eye, such as chlorophyll concentration or water stress. Multispectral cameras designed for snapshot imaging allow simultaneous capture of multiple spectral bands without motion artefacts, a critical advantage when imaging from moving platforms.
While the relevance to industrial automation is clear, the same optical challenges apply: controlled spectral response, consistent imaging under variable illumination, and mechanically robust set-ups capable of operating consistently over long stretches. Crop monitoring therefore serves as a useful illustration of how machine vision optics developed for one automation sector can successfully be adapted to another, with minimal compromise in performance and measurable improvements.
Automation, collaboration, and visual awareness
Another area where optics underpin automation progress is collaborative robotics, or cobots. Cobots rely heavily on vision systems for safe interaction, object recognition, and environmental awareness. Unlike traditional industrial robots, these systems often operate in close proximity to humans and in more dynamic settings, placing greater importance on optical clarity, distortion control, and reliability. High‑precision optics, including imaging lenses, protective windows, and specialised filters, allow for accurate depth perception, object detection, and condition monitoring within these potentially dangerous operating environments.
Supporting automation through optical expertise
For automation engineers and system designers, selecting optical components is an increasingly complex exercise. Considerations extend beyond resolution and wavelength into environmental sealing, coating durability, metrology validation, and lifecycle support. Knight Optical’s role within this ecosystem is to provide access to not only a broad portfolio of stock precision optical components, including lenses, filters, windows, and multispectral imaging solutions, but also offer the capability to deliver custom optics for bespoke applications.
Whether supporting high‑volume industrial inspection or emerging automated crop monitoring platforms, the underlying requirement remains the same: optics that perform reliably and exactly as specified, verified through rigorous metrology and quality assurance processes. As automation continues to evolve across sectors, optical performance will remain a decisive factor in determining how effectively machines can see, and therefore act, within the world around them.
If you’re looking for the right optics to ensure your automation system consistently delivers the results you need, look no further than Knight Optical’s 30+ years of sector experience.
