Miles Industrial Electronics Ltd presents the 6th generation Intel® Core ™ i7 IP67 Rugged Embedded System RES-1000 from Vecow. Offering IP67 rating protection with waterproof and dust-resilience capability, powered by 6th generation Intel® Core ™ i7 U-series processor, -30°C to 70°C extended operating temperature, 9V to 36 V wide DC power input, multiple M12 waterproof connectors in a slim, Fanless aluminium design, RES-1000 is a perfect fit for Smart Manufacturing, Rolling Stock, Environment Monitoring, Logging/Mining, Smart Automation and any associated embedded applications.
RES-1000 IP67 Rugged Embedded System delivers rugged reliability in a compact and Fanless design. Its extended operating temperature range of -30°C to 70°C, and wide DC power input range of 9V to 36 V ensure stable 24/7 operation in demanding environments. The rugged, IP67-compliant M12 waterproof connectors for Ethernet ports, COM RS-232/422/485 ports, 2-port USB and power interface, fully ensure the use in water, dust and vibration-prone locations. RES-1000 is your trusted provider of any rugged embedded applications.
- Compact & slim design, IP67 protection
- 6th Generation Intel® Core™ i7/i5/i3 U-series SoC (Skylake-U)
- 1 DDR4 2133MHz memory, up to 16GB
- Intel® HD Graphics 520 supports DirectX 12, OpenGL 4.5 and OpenCL 2.0
- Rugged, Fanless, -30°C to 70°C operating temperature
- 9V to 36V DC Power Input with M12 waterproof connector
- Dual X-coded M12 GigE LAN, iAMT 11.0 supported
- 2 M12 COM RS-232/422/485
- 1 M12 connector for 2-port USB 2.0

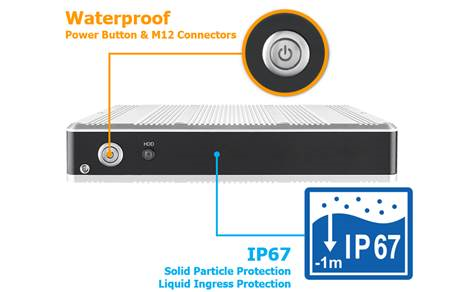

IP67 Protection
IP67 protection is designed to withstand water, dirt, dust, vibration, shock and extreme temperature change, besides, it allows submersion of one meter deep for at least 30 minutes, which is a highly strict standard to achieve. A full range of IP67 mating cables are available to ensure the IP protection is maintained.
- Anti-dust, solid particle protection
- Liquid ingress protection
- Waterproof chassis
Leading Performance
Powered by 6th generation Intel® Core ™ i7/i5/i3 processor (Skylake-U), supporting DDR4 SO-DIMM slot and up to 16 GB of memory, with one 2.5” SATA SSD and one mSATA available for extensive storage needs, unlike typical embedded systems with Atom processing in its class, RES-1000 IP67 Rugged Embedded System keeps ahead of competition and will meet your demanding embedded requirements.
- 6th Generation Intel® Core™ i7/i5/i3 Processor (Skylake-U)
- Intel® HD Graphics 520 supports DirectX 12, OpenGL 4.5 & OpenCL 2.0
- SoC Solution, Lower Power Consumption

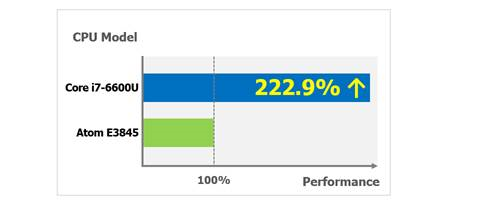

- Max 222.9% CPU performance enhanced
Compact Integration

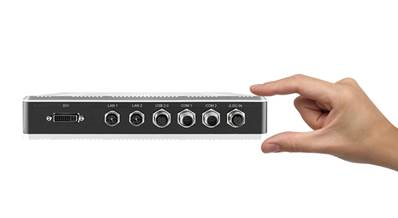

- Slim & Compact
- Intel® Core™ i7/i5/i3 SoC + Intel® HD Graphics 520
- 1080p Full HD DVI display
- 2 GigE LAN, 2 COM RS-232/422/485, 2-port USB
- Supports iAMT 11.0 & vPro

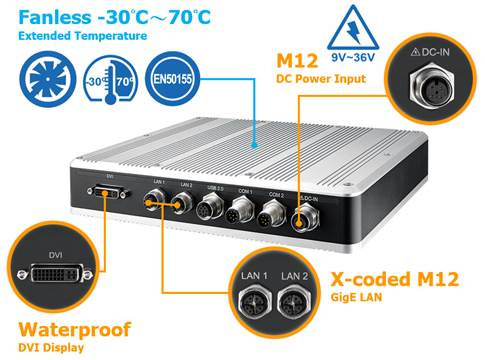

Rugged Reliability
- Fanless -30°C to 70°C operation
- Rugged M12 connections
- 9V to 36V DC power input
- CE, FCC, EN50155 compliant, EN50121-3-2 compliant
- Anti-shock, Anti-vibration
