These past few years have seen inverters promoted as one of the best energy saving technologies, and key to combating global warming. But Jeff Whiting of Mitsubishi Electric says controlling power consumption of motors is only the first of their many environmental credentials.
Motors account for 65 per cent of all industrial power consumption, and yet only 25 per cent of motors are fitted with variable speed drives which could slash a motor’s energy usage. Last year the Government realised variable speed drives represent one of the best ways to reduce the UK’s carbon footprint, bettered only by a wholesale switch to LED lighting and thermal insulation in commercial buildings.
Now, a more sophisticated definition of green manufacturing is emerging which makes even better business sense. While measures such as the Climate Change Levy and the CRC Energy Efficiency Scheme penalise companies for not reducing energy consumption, in our more sophisticated picture of green manufacturing, best practice environmental measures can boost productivity. It is variable speed drives that make the difference.

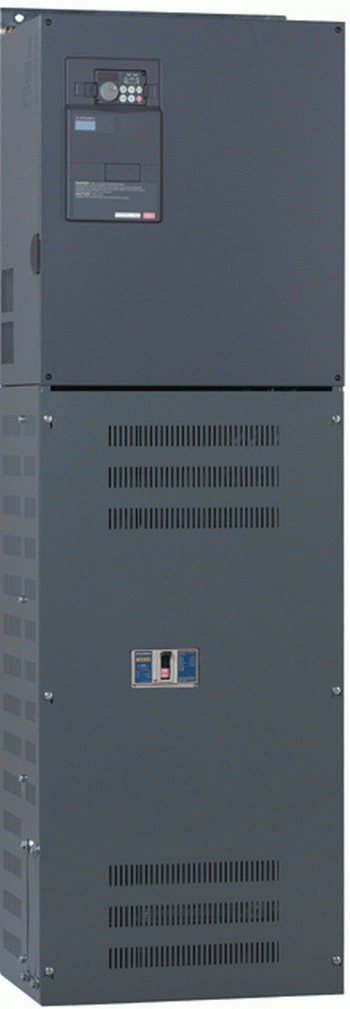

Consider, for example, the stopping of large machines, or any shaft driving a load that needs to be brought to a controlled stop. Traditionally, this would be achieved with some sort of mechanical brake. But these work by clamping the shaft and using friction to bring it to a stop – an inherent by-product of which is of course heat, or wasted energy. But a key feature of many modern variable speed drives is regenerative braking, which converts braking energy back into electrical energy. This energy can then be fed back into the main supply or shared with other drives by connecting their power reserves together.
Not only does this save energy, but the regeneration function makes it possible to achieve smaller, less expensive drive systems and simpler, more compact switchgear layouts.
Better control of a motor, means better controllability. When you apply that tighter control to the whole production line, you see significantly increased useful output, with fewer reject products, and a dramatically reduced need for any product rework. Variable speed drives help to optimise machinery and processes and to keep them at optimum efficiency throughout the production cycle.
If a process is making more useful products for a higher proportion of time, that makes you more competitive and better able to meet customer requirements. You’re also using less energy per finished product.
We can apply the same thinking to the wider production cycle, which more and more today is characterised by frequent line changeovers that cater for short runs of many different products. The requirements of the customer and the need to optimise production efficiency can appear to be in conflict, since maximum efficiency is gained on the longest possible production run of a single product. But today’s competitive global markets demand flexibility if a company is to thrive, or even to survive.
In machinery and processes without inherent flexibility, there are significant costs in product changeovers, in manpower and lost production. But once we have tighter control of those processes, changeovers become recipe based, with complete lines reset at the touch of a button. What would have required time-consuming retuning of motor speeds and profiles can now benefit from automatic adjustment. The recipes for each product to be made on the line will store all the relevant parameters and settings, and these can automatically reset the likes of variable speed drives as required.
This optimisation can mean the difference between having to manufacture for stock and being able to manufacture to order. When we’re manufacturing for stock, inevitably there will be over-production of some items which will then sit on shelves losing value. Each of those products represents a degree of wasted energy in manufacturing.
We can look at the wider plant environment, too, because every motor – regardless of its efficiency rating – generates heat. Outside of specific hazardous areas, it is unlikely the heat produced represents much of a problem to the machine itself or to personnel. But when you consider the number of motors likely to be around a typical industrial site, then you can see that these motors will be contributing to a measurable temperature rise.
In some controlled environments, that can be critical. In temperature sensitive environments such as cosmetics production, overall temperature has to be closely controlled within specific tolerances. If one process is generating excess heat, then another process has to be introduced to bring the temperature down – most likely some form of force air recirculation or air conditioning. And this, of course, is using energy.
Much more efficient would be to reduce the heat signature of the motors themselves – or even capturing that energy – and here again variable speed drives come into their own. The variable speed drive more closely matches the motor to the load, and so the motor generates less heat. Not only is the motor being run more efficiently, less work has to be done to compensate for the heat generated.
Variable speed drives have a significant role to play in making industrial plants and processes more efficient. It may be the energy saving impact of not running a motor at fixed speed that grabs most of the headlines, but when we consider a more sophisticated picture of green manufacturing, the drives make an even greater contribution to energy efficiency than first considered.
